DJI O4 Air Unit Pro
0
Shipping is calculated at checkout
Description
DJI O4 Air Unit Pro
The DJI O4 Air Unit Pro is a high-performance digital FPV transmission system built for pilots and creators who demand exceptional image quality, ultra-low latency, and reliable long-range connectivity. Equipped with a powerful 1/1.3-inch CMOS sensor, it captures stunning 4K video at up to 120fps, delivering sharp details, vibrant colors, and smooth cinematic footage. The 155° ultra-wide field of view and 10-bit D-Log M color mode provide greater creative flexibility, while RockSteady 3.0+ electronic image stabilization ensures stable and immersive footage even during high-speed flights. Supporting 1080p live transmission with latency as low as 15 ms (when paired with compatible DJI Goggles), the O4 Air Unit Pro offers an incredibly responsive FPV experience with an impressive transmission range of up to 15 km (FCC). It also features dual antennas, up to 130 Mbps video bitrate, 4GB of built-in storage, microSD card support up to 512GB, and compatibility with DJI Goggles 3, Goggles N3, Goggles 2, Goggles Integra, and DJI FPV Remote Controllers, making it an ideal upgrade for professional FPV drones seeking premium video quality and dependable digital transmission.
Key Features
Features | Details |
|---|---|
Image Sensor | 1/1.3-inch CMOS Sensor |
Lens | 155° FOV, 12 mm equivalent focal length, f/2.8 aperture |
Video Resolution | Up to 4K/120fps |
Video Format | MP4 |
Max Video Bitrate | 130 Mbps |
Color Mode | Normal, 10-bit D-Log M |
Image Stabilization | RockSteady 3.0+ |
Camera FOV Modes | Standard, Wide-Angle, Ultra Wide-Angle |
Live Video Transmission | Up to 1080p/100fps |
Lowest Latency | As low as 15 ms |
Transmission Range | Up to 15 km (FCC) |
Built-in Storage | 4 GB |
Expandable Storage | microSD Card Support up to 512 GB |
Input Voltage | 7.4–26.4 V |
Operating Temperature | -10°C to 40°C |
Weight | Approx. 32 g |
Transmission Module Dimensions | 33.5 × 33.5 × 13 mm |
Camera Module Dimensions | 25.55 × 20 × 23.30 mm |
Antenna System | Dual Antennas |
Compatible Goggles | DJI Goggles 3, Goggles N3, Goggles 2, Goggles Integra |
Compatible Controllers | DJI FPV Remote Controller 3, DJI FPV Remote Controller 2 |
Flight Controller Compatibility | Betaflight 4.3.0 or Later |

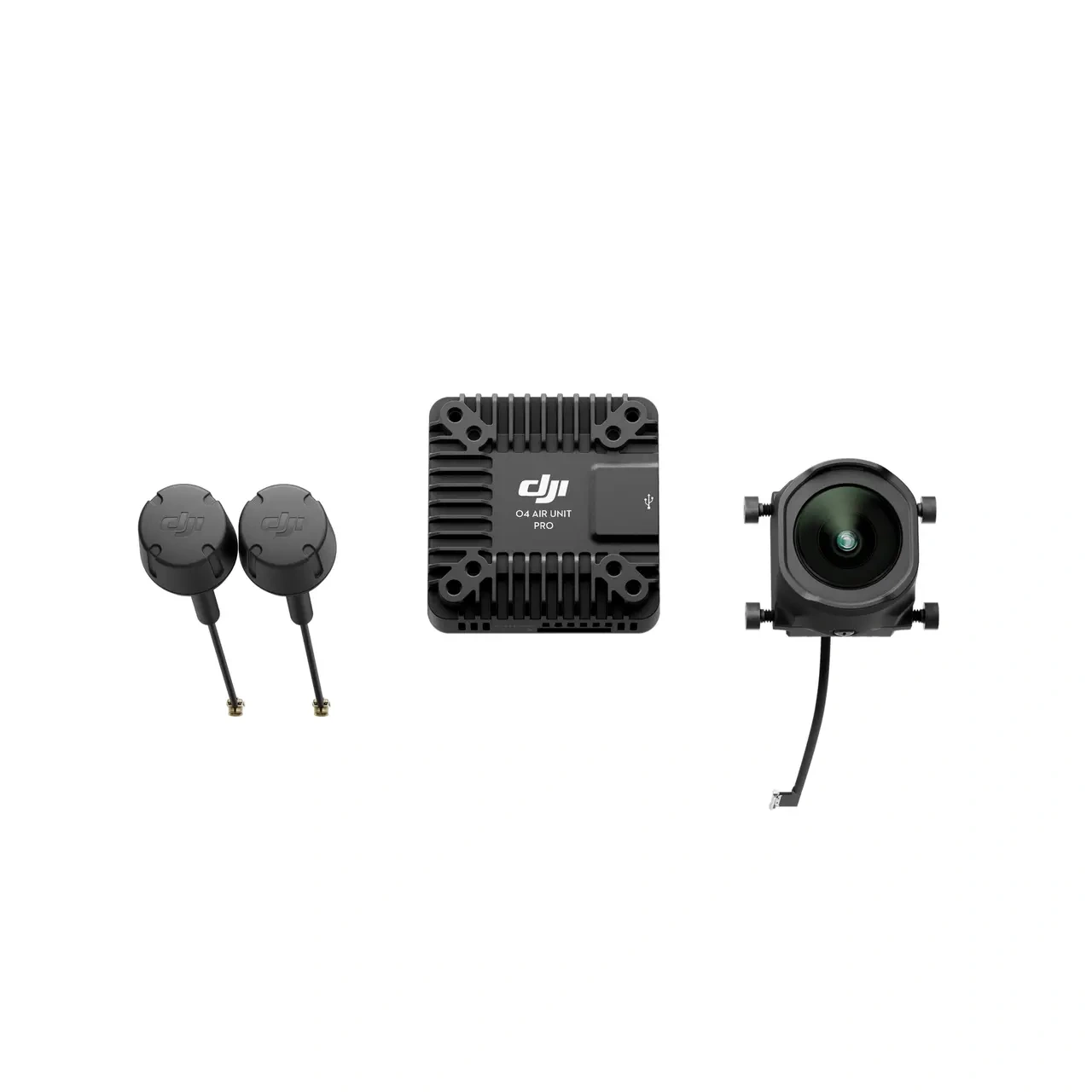

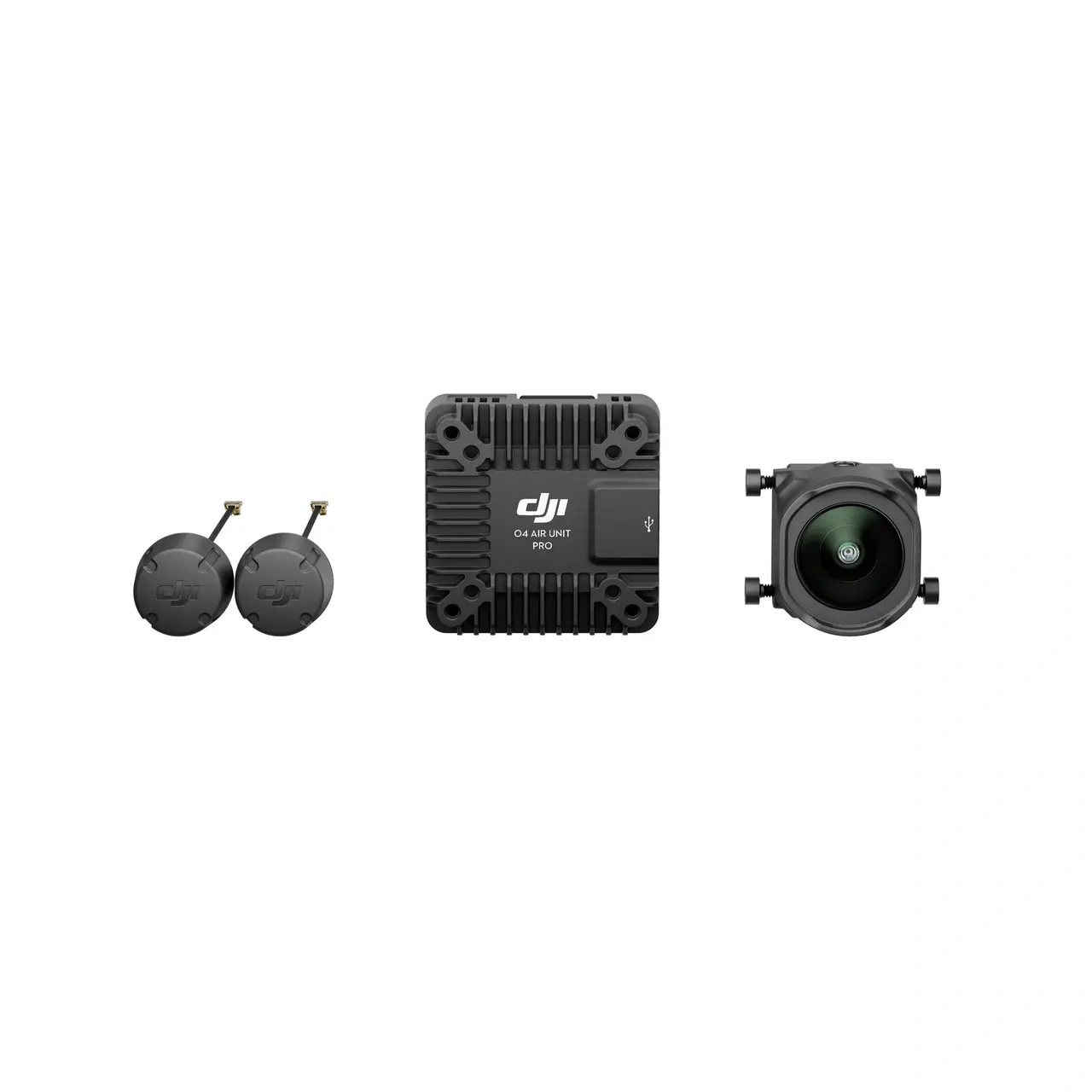

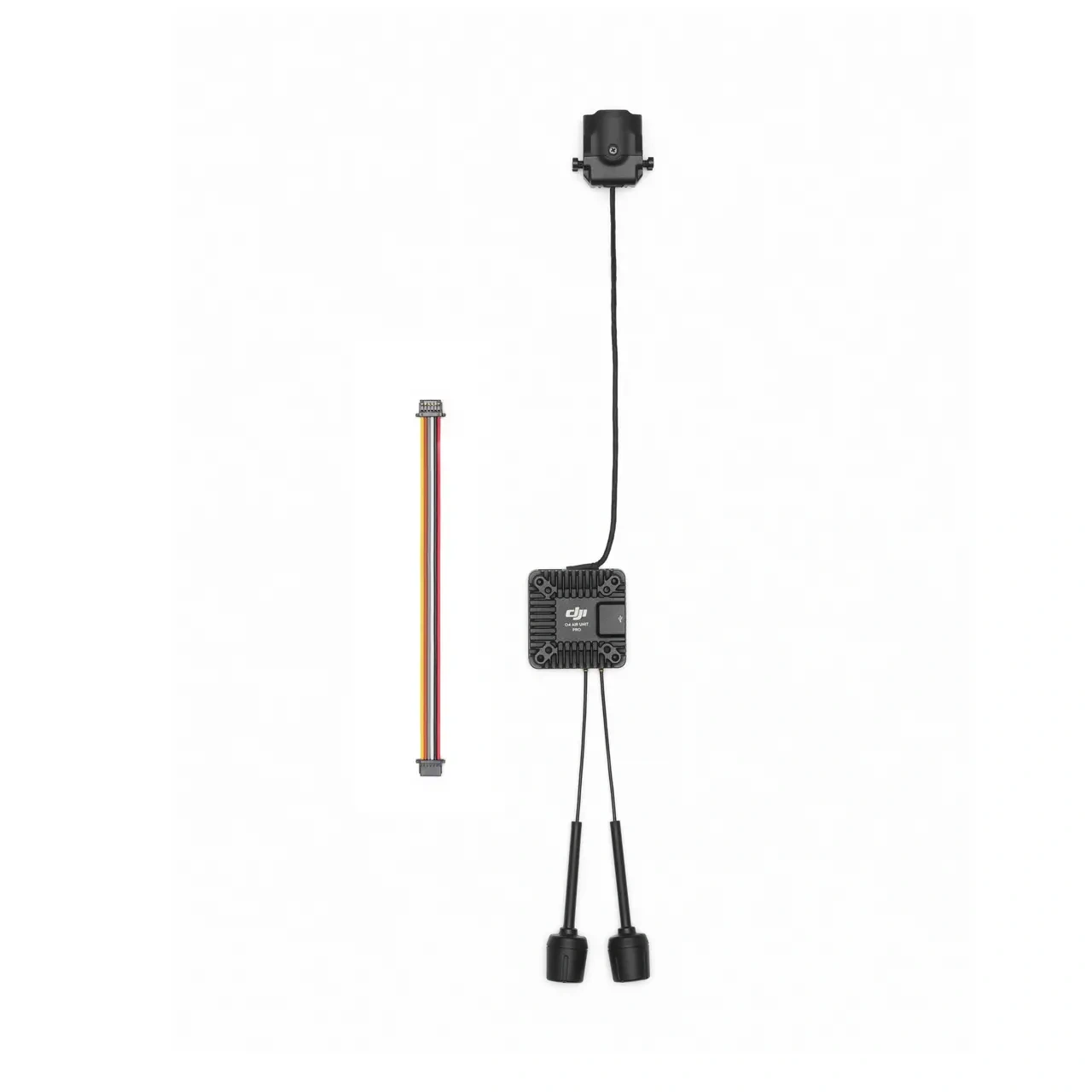

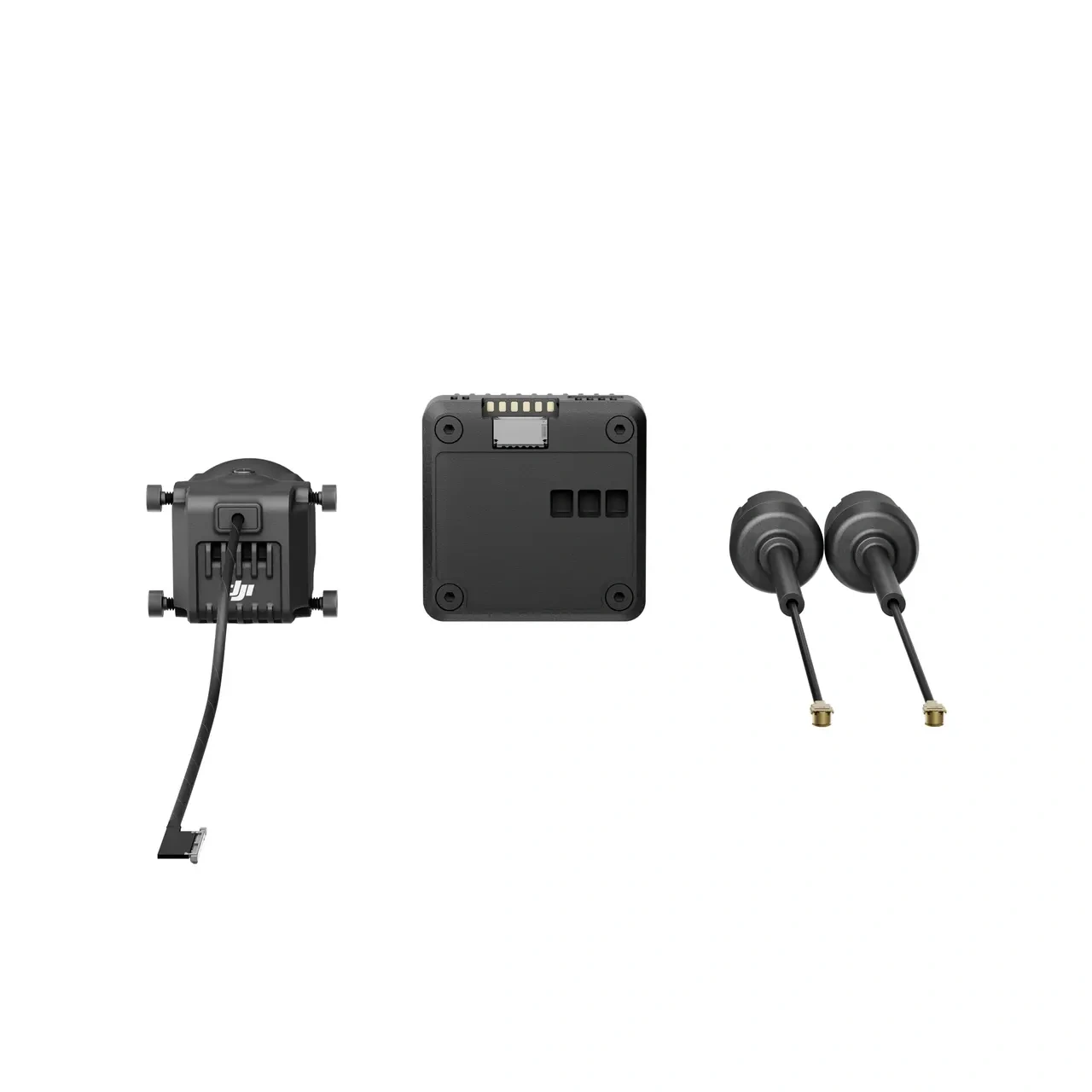

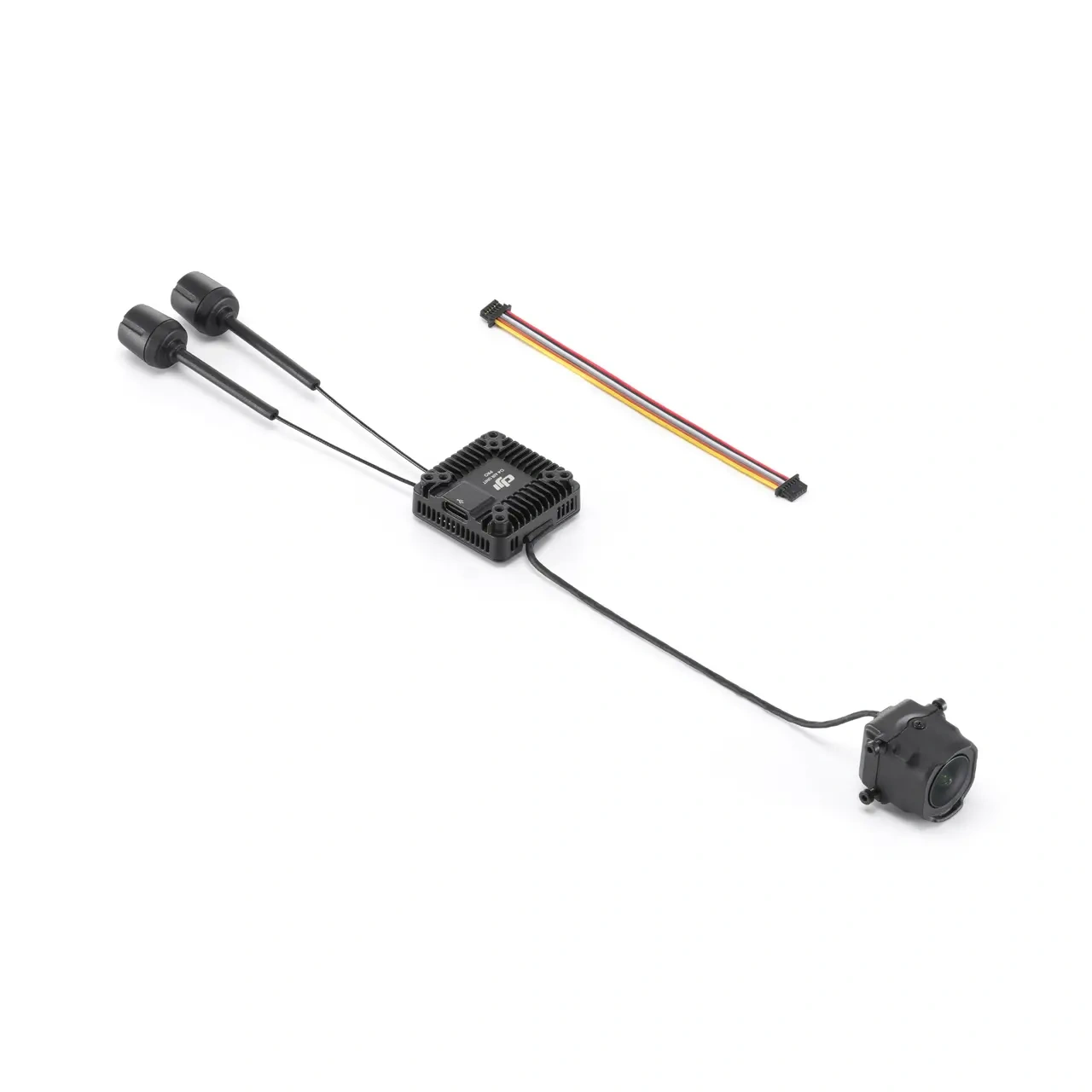

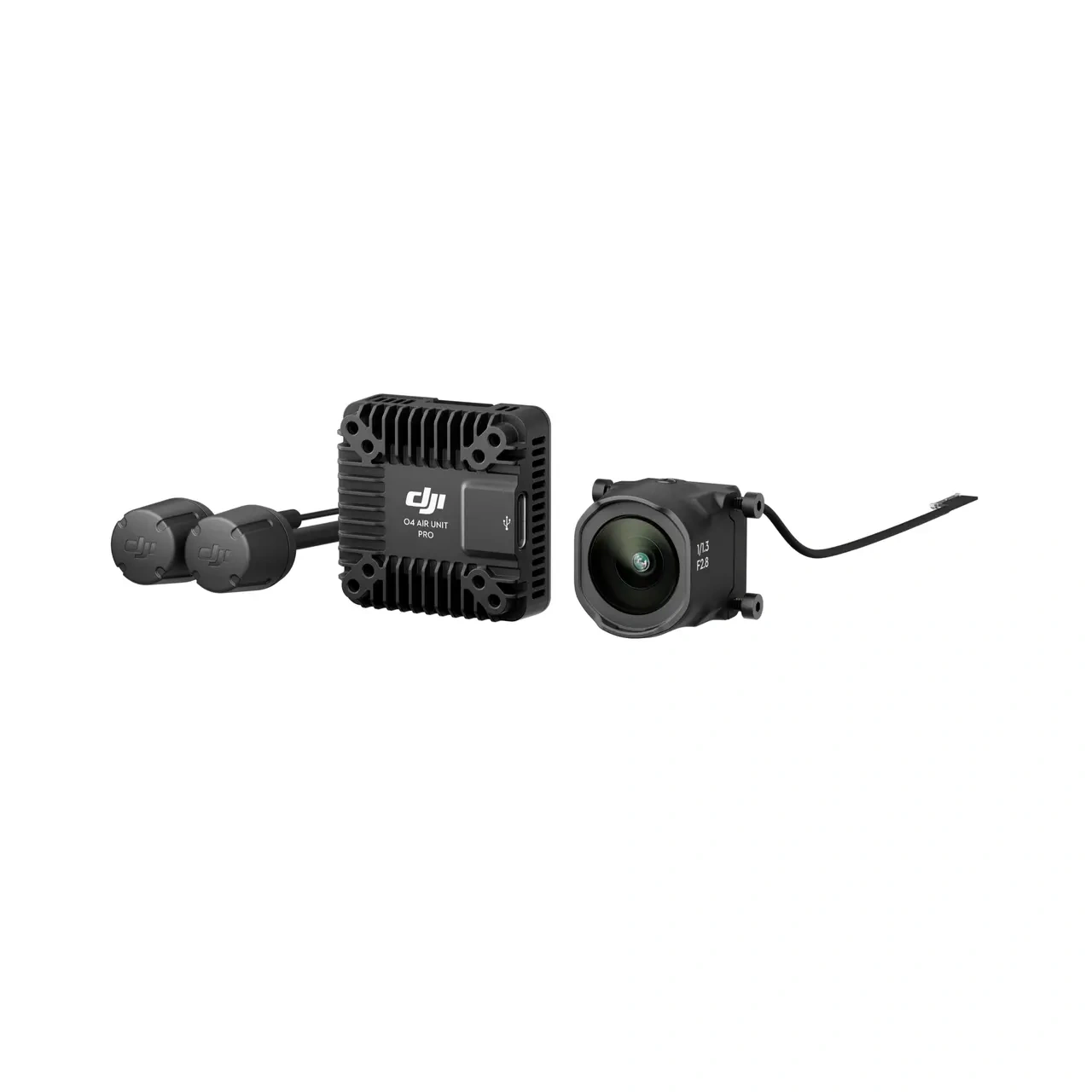

In the Box
DJI O4 Air Unit Pro Camera Module × 1
DJI O4 Air Unit Pro Transmission Module × 1
DJI O4 Air Unit Pro Antenna × 2
DJI O4 Air Unit Pro 3-in-1 Cable × 1
